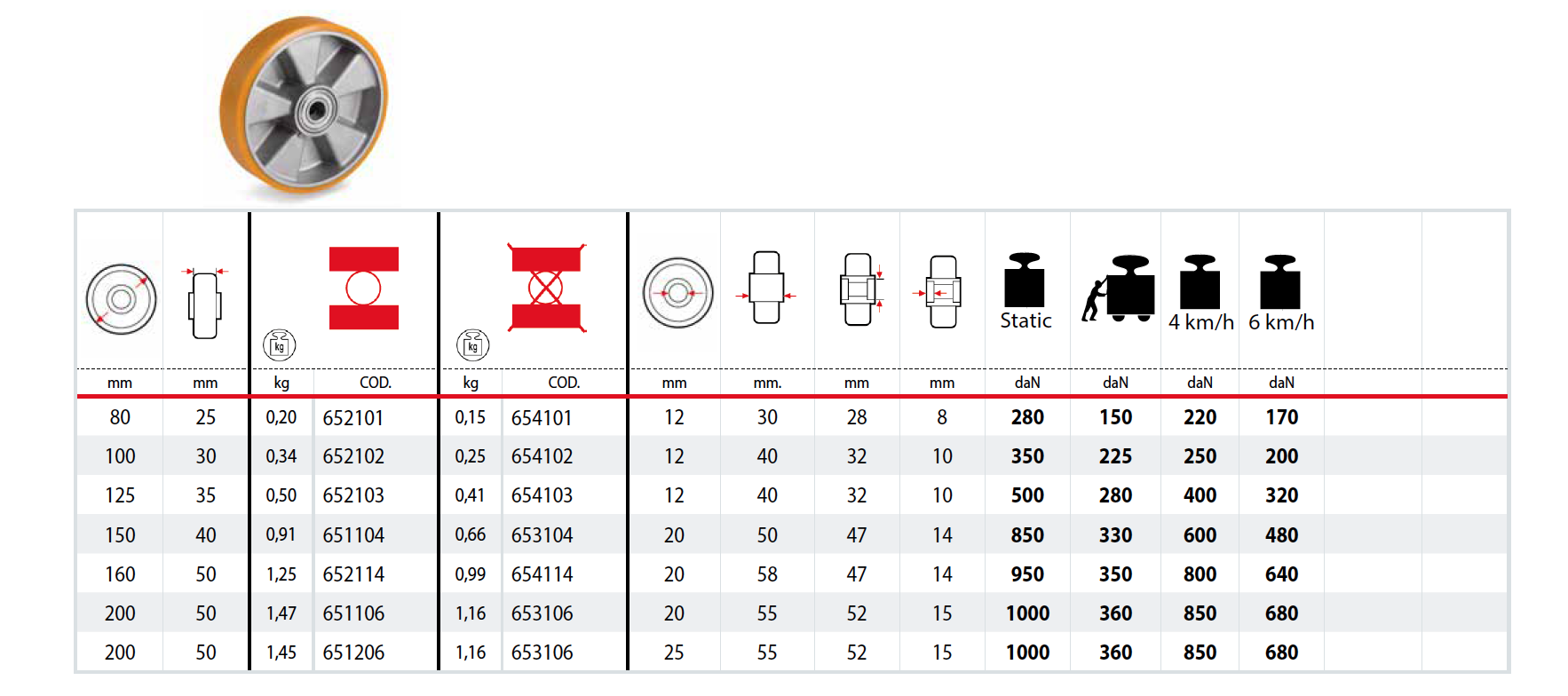

Stock code
652101
Price
0,00 TL + VAT

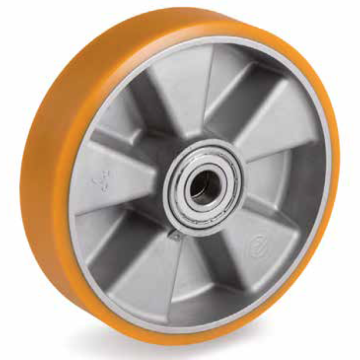

Wheel: "TR" polyurethane, hardness 95 Shore A , excellent rolling resistance and elasticity, high resistance to wear.
Center: Cast aluminum
Shielded ball bearing housing with interference fit in seats obtained by machining the centre; also available without bearings.
Use
Suitable for medium/heavy loads and used for applications up to 6 km/h speed. Excellent rolling resistance allows heavy loads to be easily carried even on small diameter wheels.
Recommended application examples: closed industrial transport trolleys, AGV trolleys, containers, electric pallet trucks, tilt trucks.
Areas of Use
Designed for industrial environments, even in the presence of alcohol, glycol, hydrocarbons. Not recommended in areas containing organic and mineral acids, basic solutions and saturated steam.
Surface
Suitable for tiles and cement resin. Not suitable if there are major obstacles.
Push & pull forces according to wheel diameter
Center: Cast aluminum
Shielded ball bearing housing with interference fit in seats obtained by machining the centre; also available without bearings.
Use
Suitable for medium/heavy loads and used for applications up to 6 km/h speed. Excellent rolling resistance allows heavy loads to be easily carried even on small diameter wheels.
Recommended application examples: closed industrial transport trolleys, AGV trolleys, containers, electric pallet trucks, tilt trucks.
Areas of Use
Designed for industrial environments, even in the presence of alcohol, glycol, hydrocarbons. Not recommended in areas containing organic and mineral acids, basic solutions and saturated steam.
Surface
Suitable for tiles and cement resin. Not suitable if there are major obstacles.

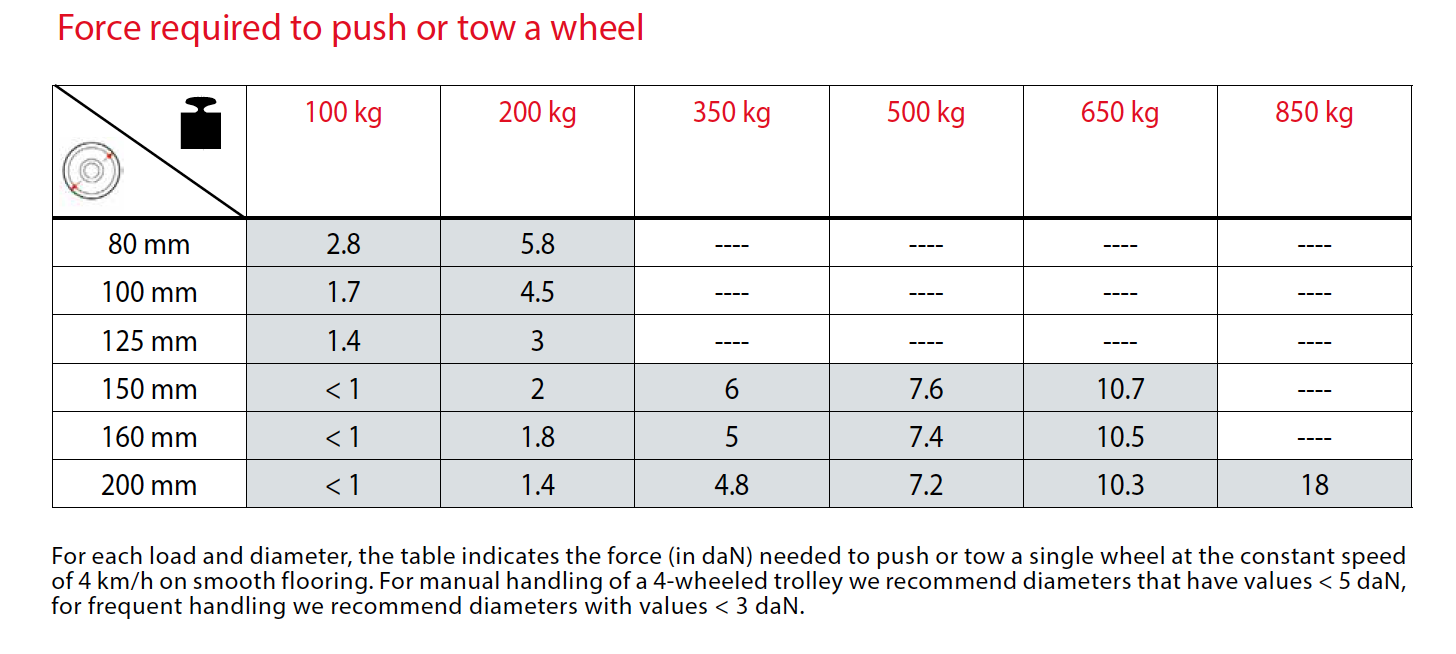

The table shows how much pushing and pulling force is needed for each load and diameter. Each wheel has a fixed speed capacity of 4 km / h. In manual use, a pushing and pulling force of a 4-wheeled vehicle requires < 5 daN. In frequent use, a force of < 3 daN is required.

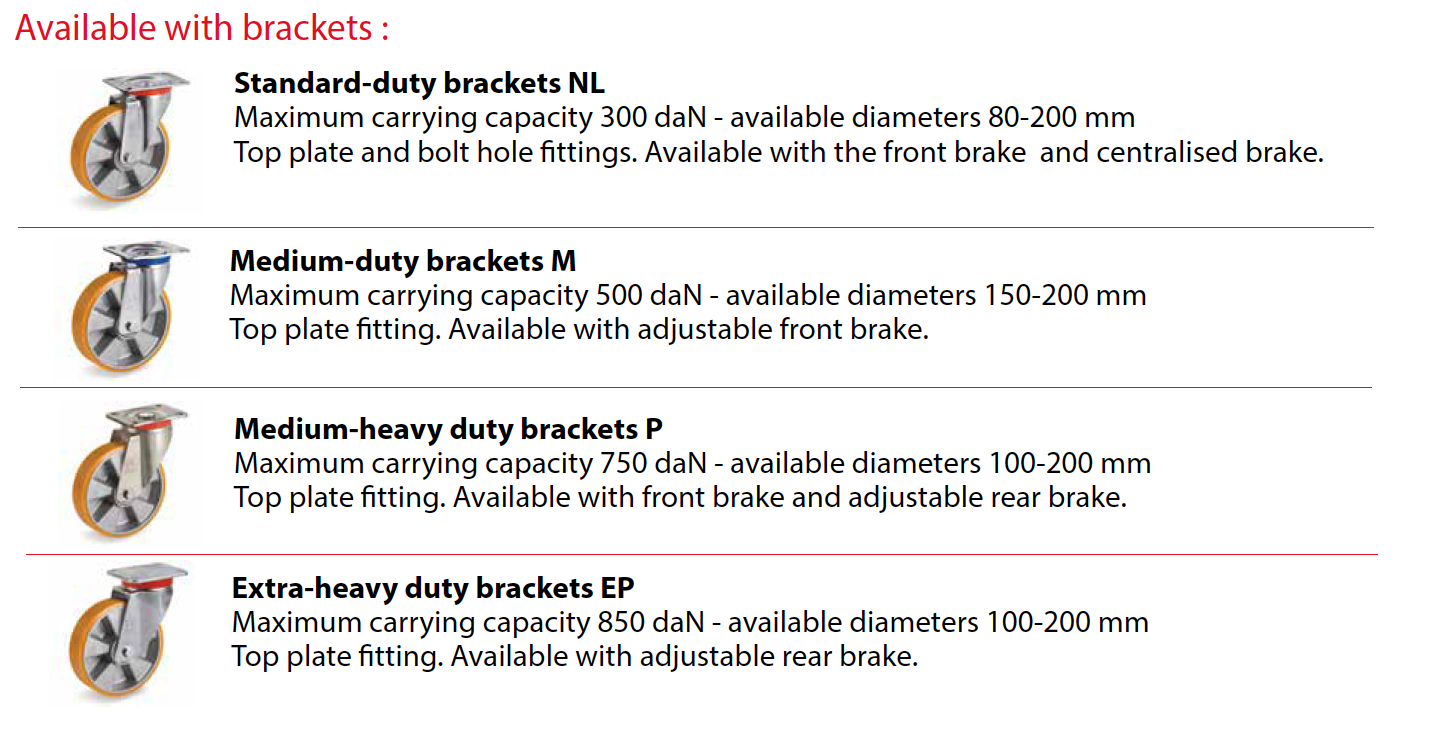

According to Application Areas; tongs
Standard Level : NL
Intermediate Level : M
Medium - Heavy Level : P
Extra Heavy Level: EP

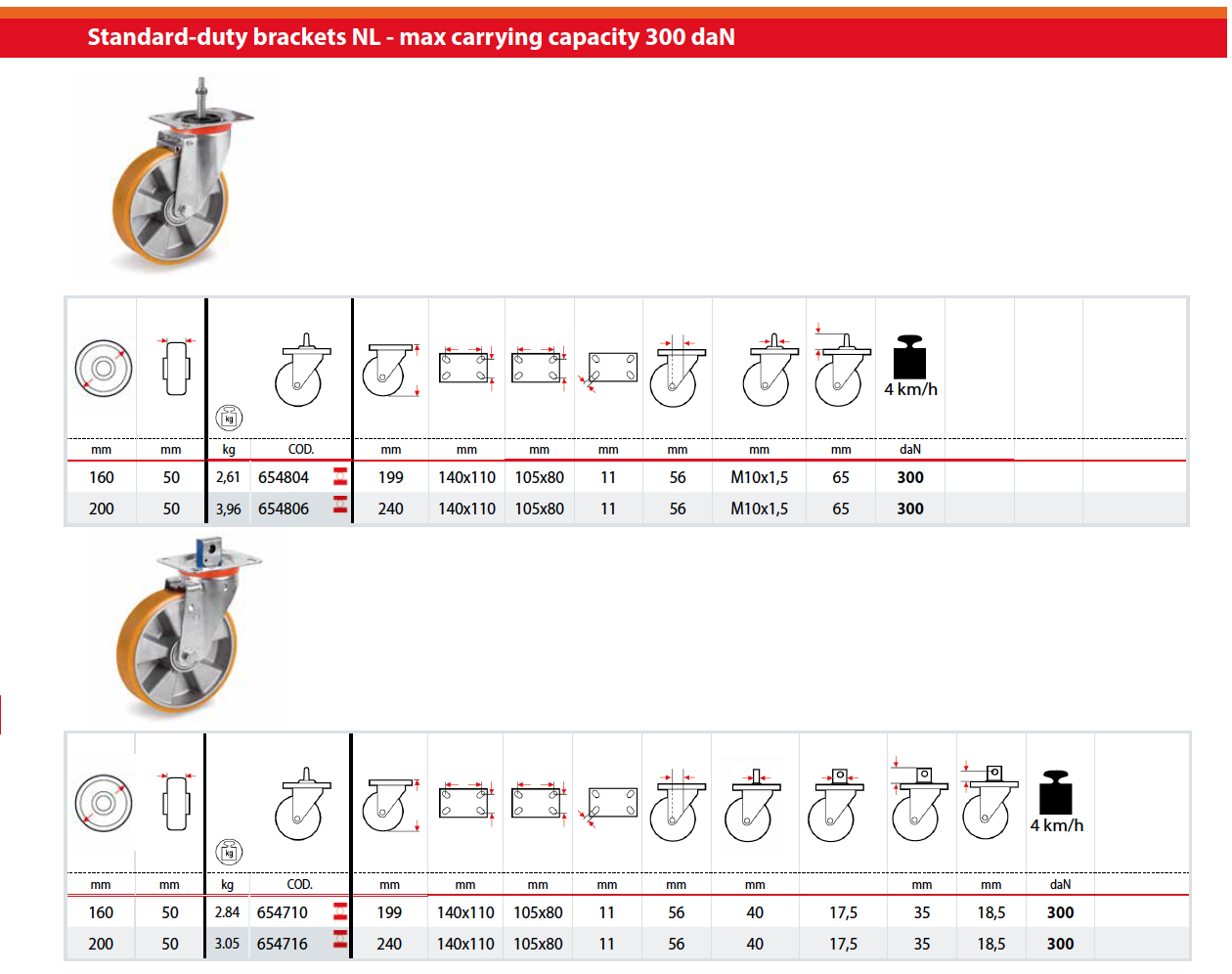

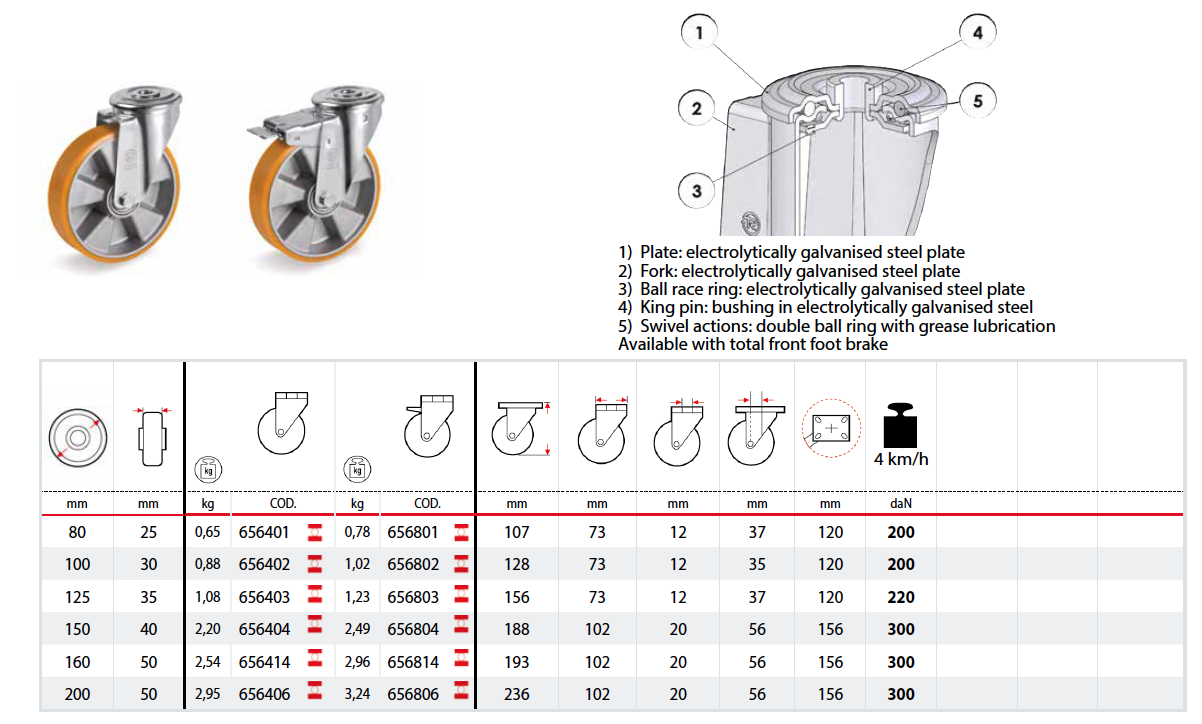

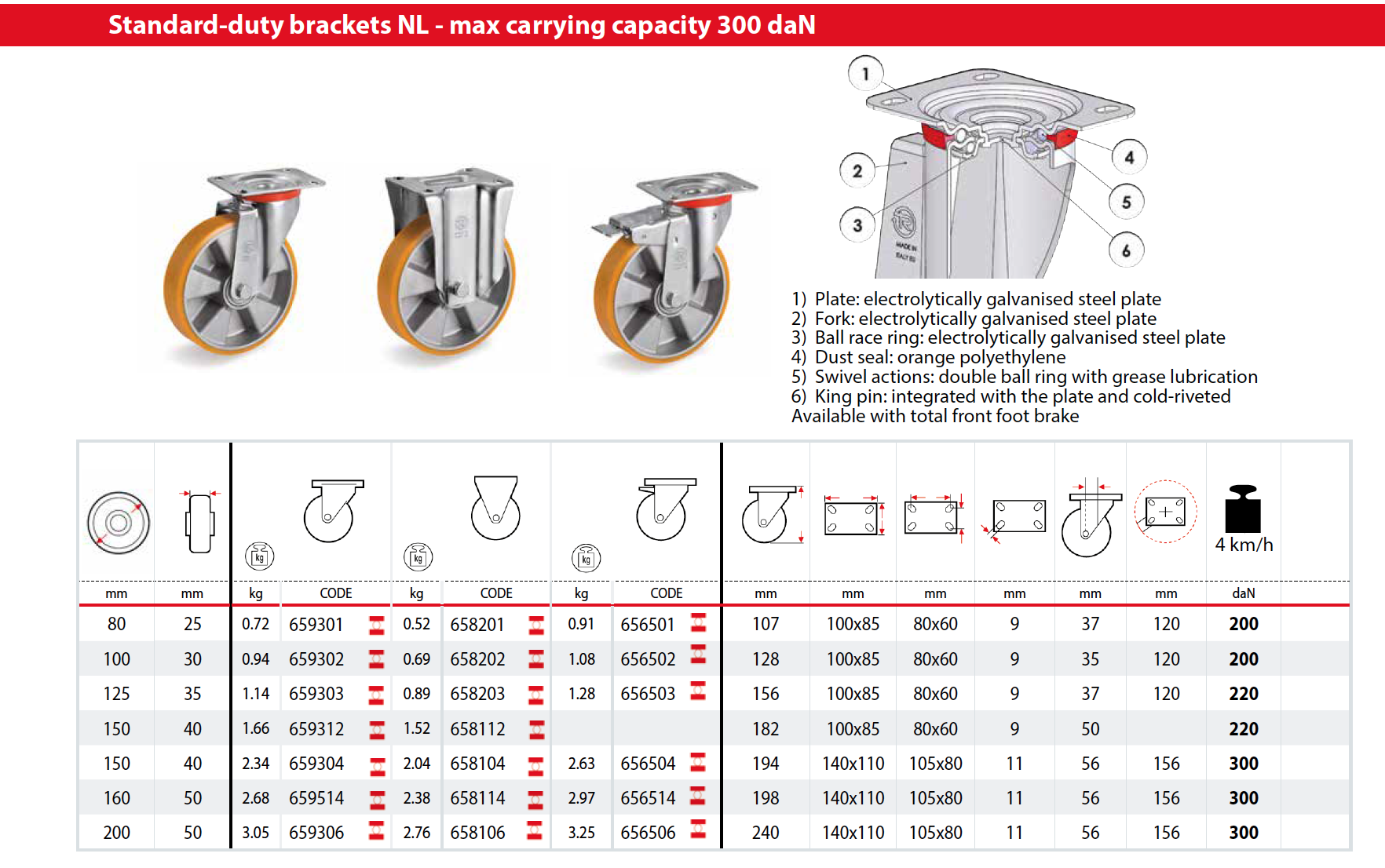

Standard level carrying tongs NL - Maximum carrying capacity 300 daN
Standard level carrying tongs NL - Maximum carrying capacity 300 daN

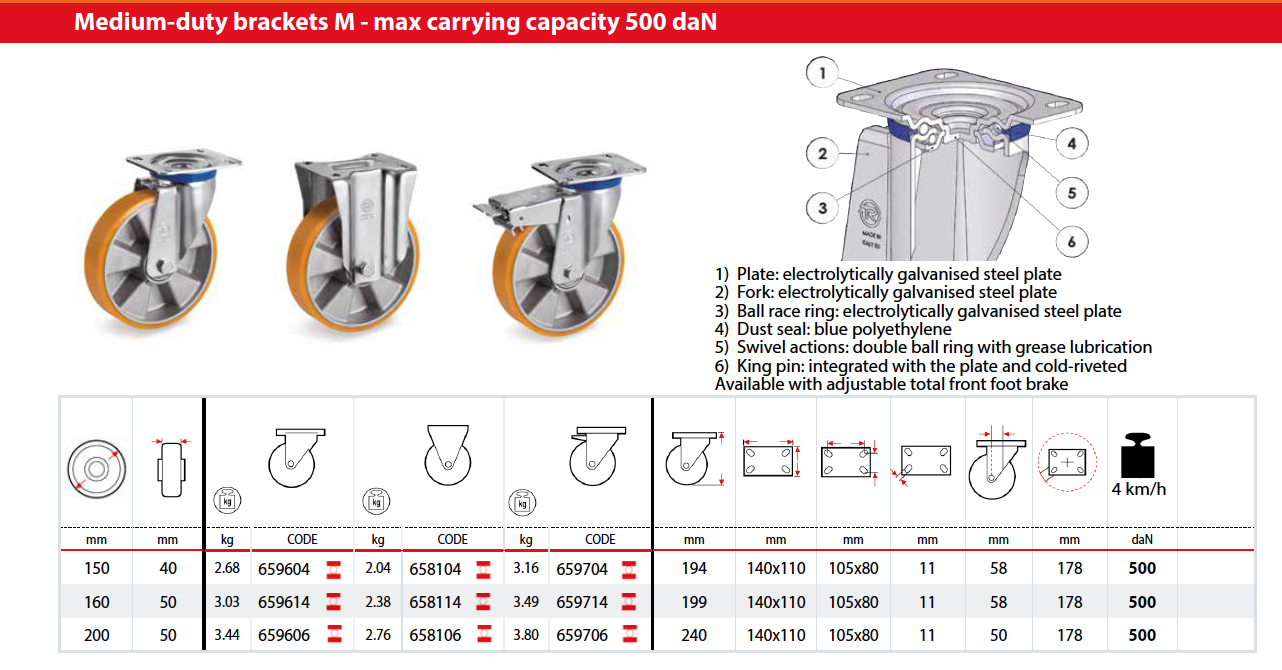

Medium load-bearing tong M - Maximum load-bearing capacity 500 daN

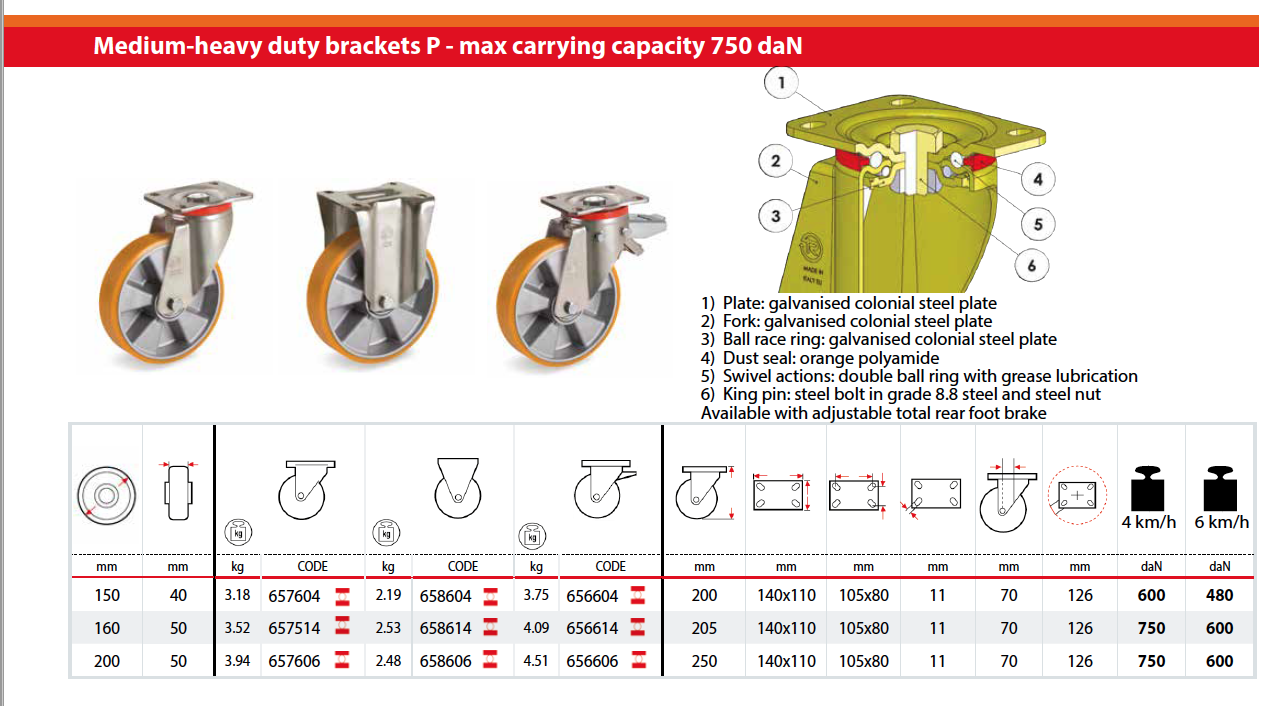

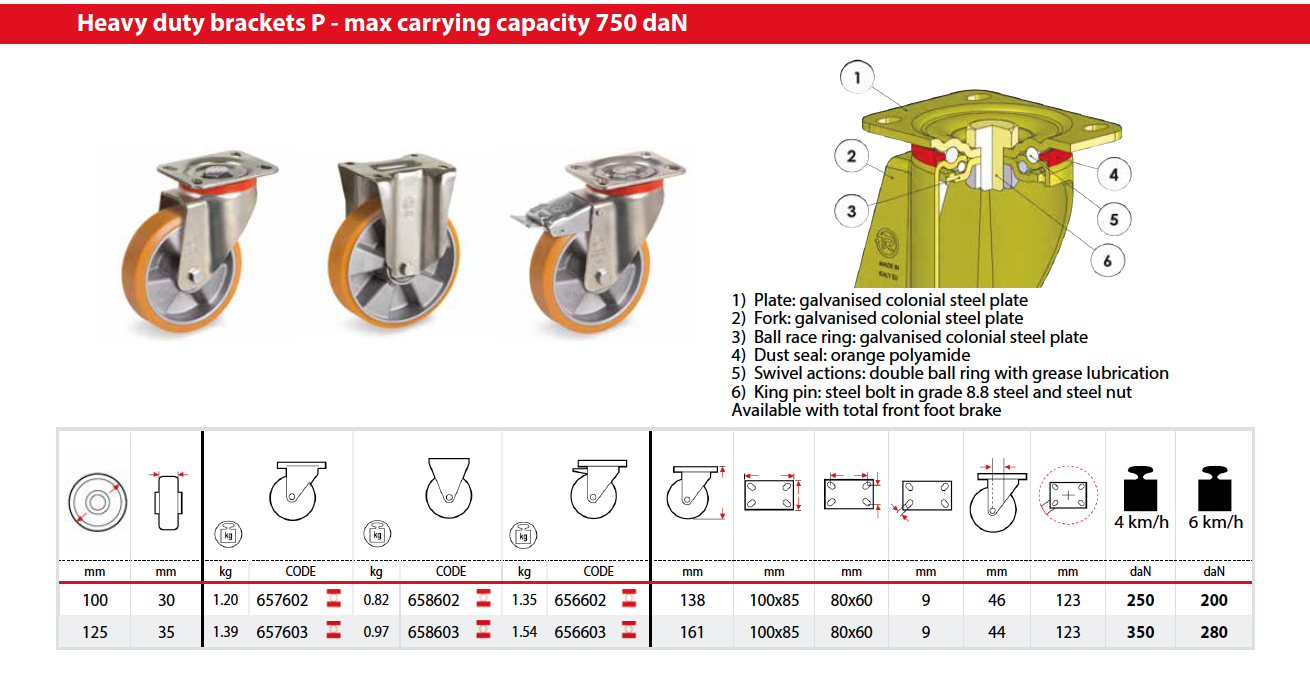

Heavy level lifting tongs NL - Maximum load capacity 750 daN

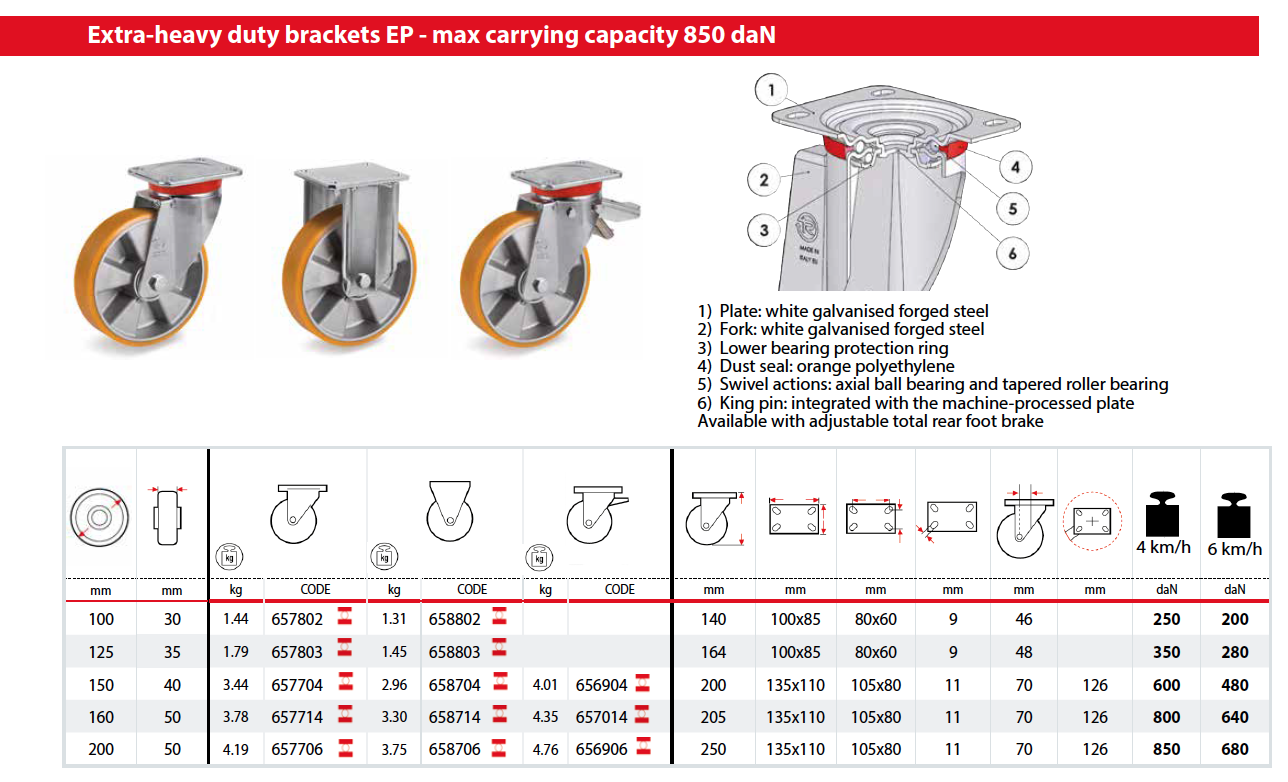

Extra heavy duty tongs EP - maximum load capacity 850daN
