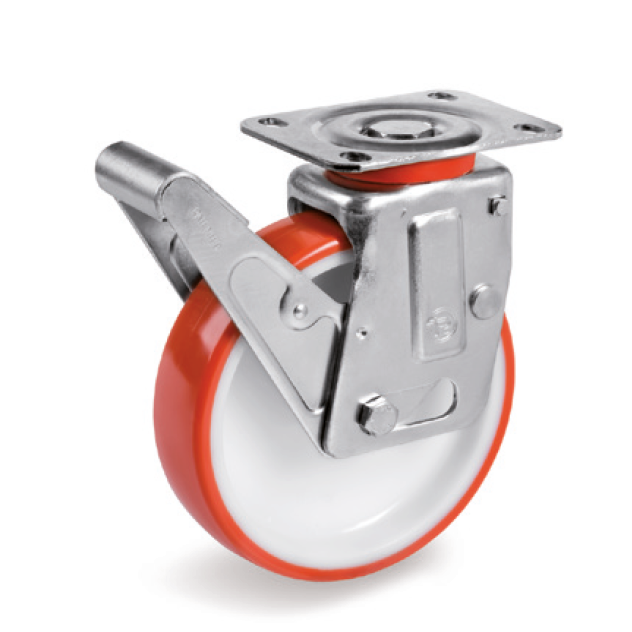

60 Series Scaffolding Wheel with Brake Pedal
Product introduction and review video:
60 series scaffolding castors with brake pedal; polyurethane coated polyamide wheels and castors are specially designed for aluminium mobile scaffoldings that require single or double pressure locking.
It is user-friendly and functional with its special fork design that locks the shaft and the wheel separately when the brake pedal is pressed.
It is preferred by important companies in the world with its safety and quality (UNI EN 1004:2005) certificate for the scaffolding sector.
Polyurethane coated and polyamide wheels with a diameter range of 125 to 200 mm grip the ground well and can withstand static loads of up to 750 kg. These wheels and castors with customized movable head and fork bearing mechanisms are perfect for mobile scaffolding.

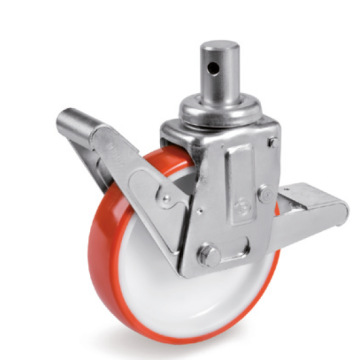

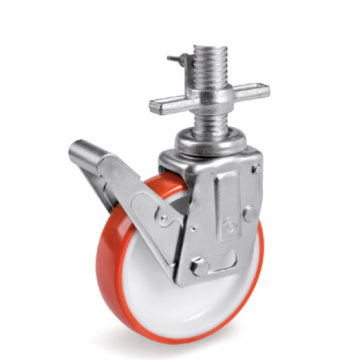

The 60 series scaffolding wheel with brake pedal is specially produced for various scaffolding applications with shoulder, shaft and wing nut tong geometries. The 60 series scaffolding wheel with brake pedal is specially designed to stop and lock as desired thanks to the brake pedal, and its structure that fits specially designed scaffolding or can be designed as desired comes with a front plate.
It is user-friendly and functional with its special fork design that locks the shaft and the wheel separately when the brake pedal is pressed.
It is preferred by important companies in the world with its safety and quality (UNI EN 1004:2005) certificate for the scaffolding sector.
Polyurethane coated and polyamide wheels with a diameter range of 125 to 200 mm grip the ground well and can withstand static loads of up to 750 kg. These wheels and castors with customized movable head and fork bearing mechanisms are perfect for mobile scaffolding.
The 60 series scaffolding wheel with brake pedal is specially produced for various scaffolding applications with shoulder, shaft and wing nut tong geometries. The 60 series scaffolding wheel with brake pedal is specially designed to stop and lock as desired thanks to the brake pedal, and its structure that fits specially designed scaffolding or can be designed as desired comes with a front plate.
According to their models;
1- Plate: Electrolytically galvanized steel plate
2-Tongs: Electrolytically galvanized steel sheet
3-Ball Bearing Structure: Electrolytically galvanized steel sheet
4-Big King Pin: 150-200mm diameter, steel and nut inside, solid body, locked with mechanical deformation. 125mm diameter, Grease lubricated double ball rails.
5-Rotary Pin: 125-150 mm diameter, Grease lubricated double ball rails. 200 mm diameter, Single direction axial bearing and grease lubricated single ball slide
1- Plate: Electrolytically galvanized steel plate
2-Tongs: Electrolytically galvanized steel sheet
3-Ball Bearing Structure: Electrolytically galvanized steel sheet
4-Protective Felt: Orange Polyamide
5- Big King Pin: Steel pin and nut locked by mechanical deformation
6-Rotary Pin: 150 mm diameter, Grease lubricated double ball rails. 200 mm diameter, Single direction axial bearing and grease lubricated single ball slide
1- Plate: Electrolytically galvanized steel plate
2-Tongs: Electrolytically galvanized steel sheet
3-Ball Bearing Structure: Electrolytically galvanized steel sheet
4- Big King Pin: Akme toothed handle, made of steel pipe, mechanical deformation with nut lock
5-Rotary Pin: 150 mm diameter, Grease lubricated double ball rails. 200 mm diameter, Single direction axial bearing and grease lubricated single ball slide

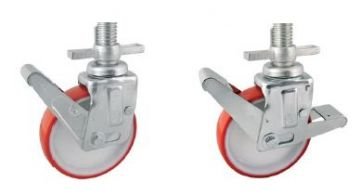

Scaffolding Wheels can be custom manufactured in desired shapes;
