Stock code
632122
Price
0,00 TL + VAT
Explanation

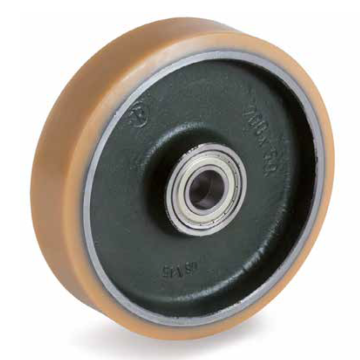

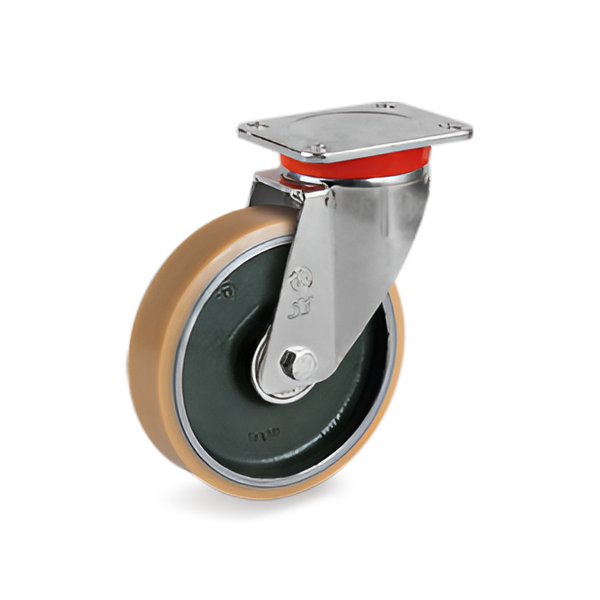

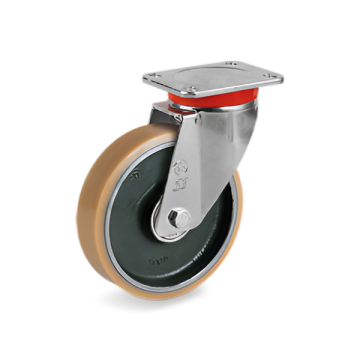

Vulkollan®, hardness 93 Shore A: Excellent rolling resistance and elasticity, highly resistant to abrasion, tearing and deformations.
Vulkollan®, hardness 93 Shore A: Excellent rolling resistance and elasticity, highly resistant to abrasion, tearing and deformations.
Center: forged steel.
Shielded ball bearing housing with interference fit in seats obtained by machining the centre; also available without bearings.
Use:
Suitable for heavy loads and high mechanical speed applications.
Guarantees excellent performance with suitable forks. (16 km/h.)
Excellent rolling resistance allows heavy loads to be carried easily, even on small diameter wheels.
Recommended application examples: closed industrial transport trolleys, AGV trolleys, containers, electric pallet trucks, forklifts.
Push & pull forces according to wheel diameter
Push & pull forces according to wheel diameter
The table shows how much pushing and pulling force is needed for each load and diameter. Each wheel has a fixed speed capacity of 4 km / h. In manual use, a 4-wheeled vehicle requires a pushing and pulling force of < 5 daN. In frequent use, a force of < 3 daN is required.
According to Application Areas; tongs
Standard Level : NL
Intermediate Level : M
Medium - Heavy Level : P
Extra Heavy Level: EP
Standard level carrying tongs NL - Maximum carrying capacity 300 daN
Medium duty tongs M - maximum load capacity 500 daN
Medium-Heavy duty type tongs M - maximum load capacity 750 daN
Heavy duty tongs EP - maximum load capacity 750daN
Extra heavy duty tongs EP - maximum load capacity 1500daN
