3624 Serisi Dişli Tahrikli Dönüşlü Konveyör Rulosu / Curve Conveyor Roller Series
Comment / Read Comments
0,00 TL
3624 Gear Driven Curve Conveyor Roller
Product Features
Compatible with 3214 series.
It has a grey polypropylene cover and is impact resistant.
It operates with low noise.
It is resistant to abrasion.
The gear structure made of polyamide material produces less noise than metal drive gears.
The combination of plastic bush inside the ball bearing ensures very smooth operation.
This bush bearing is perfectly protected from dirt and other corrosive liquids.
While the chain and conveyor roller drive gear do not allow wear, they should not be used on slopes over 5cm.
A single roll has a resistance of 50 kg.
It is resistant to temperatures between -5C and +40C.
Product structure
The roller bearing housing is black poltemid.
Protective bush made of green polypropylene.
The bearing is 6002 ball bearing.
Drive gears are black polyamide.
Click to Download PRODUCT 3D DRAWING

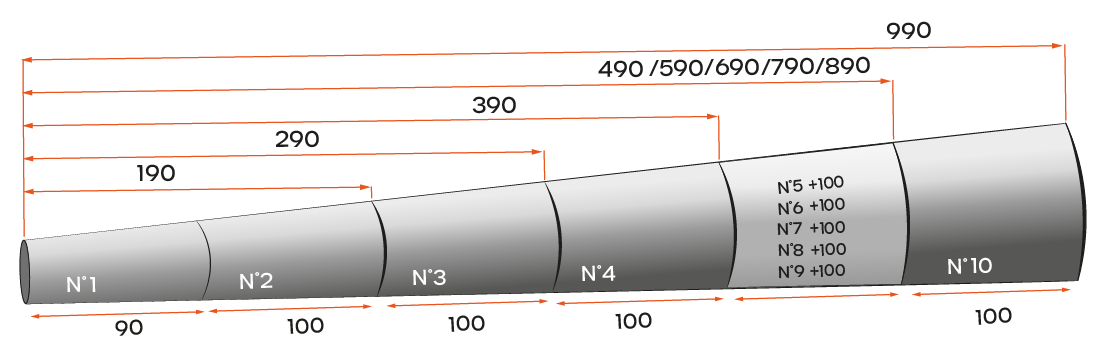

Gear Driven Curve Conveyor Roller Technical Drawing
Gear Driven Curve Conveyor Roller Technical Table
