2200 Serisi Avara Konveyör Rulosu / Gravity Conveyor Roller Series
Comment / Read Comments
0,00 TL

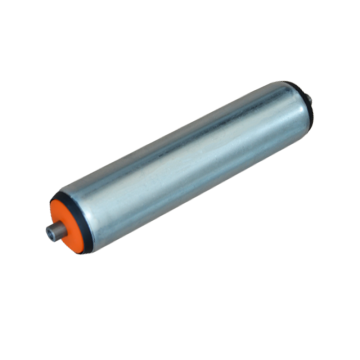

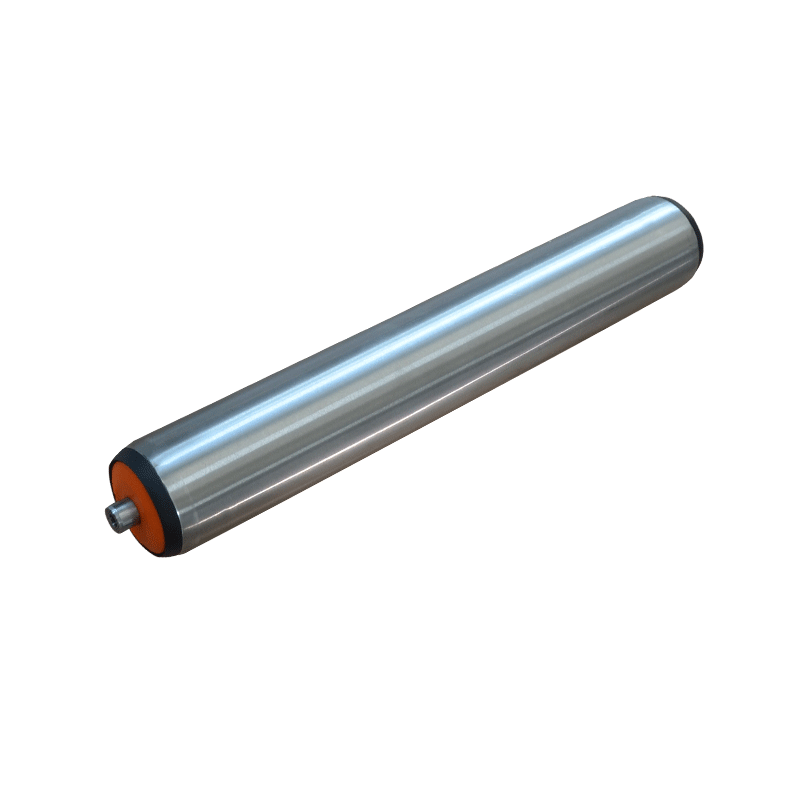

2200 Gravity Conveyor Roller
• It is the most widely used and popular product in the idler conveyor roller series. It is generally used in cardboard box handling applications.
• The bearing housing consists of a precision ball bearing, a polymer housing and a final bushing seal. Together they provide a roller with high traction performance, smooth and quiet operation. The bushing design protects the bearings by providing excellent resistance to dust and splash water.
• Can be configured with different bearings depending on the application. Meets the requirements of lightweight gravity slides.
• Suitable for high speed applications. Maximum speed varies according to roll length and diameter. Maximum speed is up to 120m/min.
• Static electricity protection configuration is available. (Antistatic)
• Temperature range: 5°C to +40°C.
• This gravity roller is widely utilized and stands as the most favored product in its series, particularly in carton conveying applications.
• Featuring a precision ball bearing, a polymer housing, and an end cap seal, the bearing end cap ensures an attractive, smooth, and quiet roller operation.
• The end cap design offers robust protection to the bearings, effectively resisting dust and splashed water.
• It can be customized with various bearings to suit different applications, meeting the requirements for light gravity chutes.
• Designed for high-speed applications, its maximum speed varies depending on roller length and diameter, with a maximum speed of up to 120m/min achievable.
• Anti-static configuration is available.
• Temperature range: 5°C to +40°C.
Promotional Video
2200 Series Gravity Conveyor Roller Product Types
2200 Series Idler Conveyor Roller Strength Table / 2200 Series Gravity Conveyor Load Capacity
