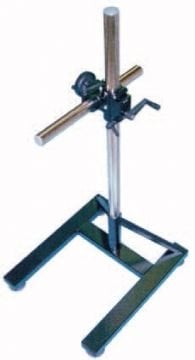

3222 CROSS SHAFT MOVABLE BASE Ø60/50
Comment / Read Comments
88.262,19 TL
*With installments starting from 10.007,17 TL !!
Category
Stock code
666906
Menşei
ITALY
Warranty Period
24 Month
Price
88.262,19 TL + VAT
Transfer
101.678,04 TL
(% 4,00 remittance discount)

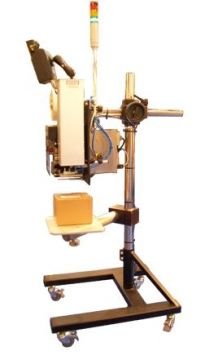

It is manufactured for frequent adjustments with a pedestal by means of adjustable shafts on two axes (crosswise) with a flywheel. It provides forward and backward movement on two separate axes, thus making adjustments useful.
The movement pitch of this base (one turn of the wheel is 3mm) The base is suitable for shipment with a pallet truck with its adjustable height and depth.
Tightening torque: Ø60= 50 Nm / 35 Nm for Ø50. Its movement is a step movement. Continuous operation cannot be done on it.
(maximum 70 rpm; maximum time: 1 min; cycle ratio start/end =1/60)
Material; It consists of 2 axis internal shaft base (electrostatic nickel coated) steel, 1 aluminum carrying body, 1 flywheel, 1 wheel arm, 2 machine feet reinforced polyamide, 1 steel foot group.
